Description
Omschrijving:
Model: 6J1 buis
Kanaal type: 2.0 / Stereo
Bedrijfsspanning: AC12V
Bordgrootte: 80 x 100 mm
| Naam | Parameter | PCB-markering | Aantal stuks |
| Weerstand | 1K | R2 R4 R30 R31 | 4 |
| 100K | R16 R19 | 2 | |
| 4.7K | R1 R3 R10 R13 R17 R18 R20 R21 | 8 | |
| 47R | R5-R8 | 4 | |
| 47R/3W | R9 | 1 | |
| 470K | R11 R14 | 2 | |
| 56K | R22 R23 | 2 | |
| 200R | R12 R15 | 2 | |
| 22K | R24 R26 R27 R32 | 4 | |
| 10R | R25 R28 | 2 | |
| Condensator | 47uF/10V | C13 C14 | 2 |
| 470uF/35V | C5-C8 | 4 | |
| 2200uF/25V | C1-C4 | 4 | |
| Filmcondensator | 1uF/50V | C9-C12 | 4 |
| 0.1uF (104) / 50V | C15 C16 | 2 | |
| Transistor | D667 | Q1 Q4 | 2 |
| B647 | Q2 Q3 | 2 | |
| Klemmenblok | 2p | J1 J2 | 2 |
| 3p | GND | 1 | |
| Audioblok | 3.5MM | J3 J4 | 2 |
| LED | 3mm Blauw | D1 D2 | 2 |
| Gelijkrichterbrug | KBJ608 | P1 | 1 |
| Elektronische buis | 6J1 | D1 D2 | 2 |
| Elektronische buisvoet | 7pin | D1 D2 | 2 |
| Dubbele potentiometer | 50K | RP | 1 |
| Eindversterker chip | LM1875 | U1 U2 | 2 |
| Schroef | M3 x 5 | 2 | |
| Potentiometer dop | 1 | ||
| Heatsink | 1 | ||
| Isolerende plaat | 2 | ||
| PCB | 1 |
Pakket inbegrepen:

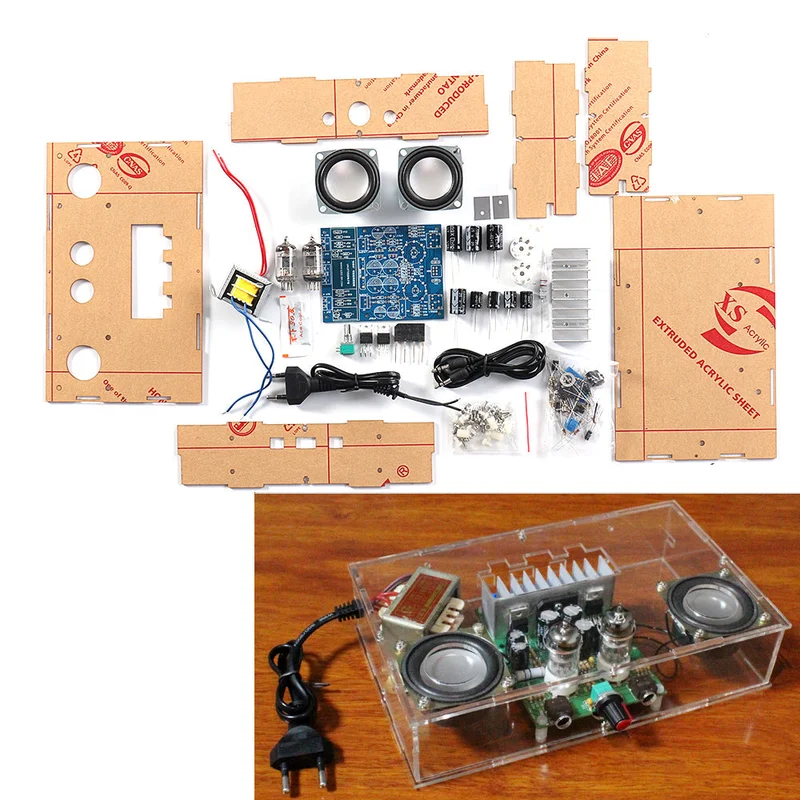

- 1 x DIY 6J1 buis voorversterker kit
- 1 x 12V dubbele voeding
- 1 x behuizing
- 2 x luidsprekers
