Description
Omschrijving:
Kleur: blauw
Specificaties:
| KV | 900 | 1000 | 1200 | 1400 |
| Stator Diameter | 28mm | |||
| Stator Dikte | 14mm | |||
| Aantal Stator Armen | 12 | |||
| Aantal Rotor Palen | 14 | |||
| No-Load Current (A / 10V) | 1.2A | 1.3A | 1.7A | 2.3A |
| Motorweerstand | 33.6mΩ | 35.5mΩ | 21.3mΩ | 15.9mΩ |
| Max. Continue Stroom | 50A/30s | 55A/30s | 55A/30s | 80A/30s |
| Max Vermogen | 680W | 750W | 815W | 1180W |
| Gewicht | 108g | 113g | 110g | 109g |
| Rotordiameter | 35mm | |||
| Lichaamslengte | 36mm | |||
| Max Lipo Cell | 3-4S | |||
| Aanbevolen ESC | 40-60A | 40-60A | 50-60A | 80A |
| Aanbevolen Prop (inch) | APC11 * 5.5, APC13 * 6.5 APC11 * 8, APC13 * 8 |
APC11 * 5.5, APC13 * 6.5 APC12 * 6, APC12 * 8 |
APC11 * 5.5, APC1050, APC9060 |
APC8060, APC9060 |
| Toepasselijk Aerobatic Vliegtuiggewicht | 1200 g – 1400 g (3S APC13x6.5, 3S APC13x8) (4S APC11x5.5, APC11x7, APC11x8) | 1200 g – 1400 g (3S APC12x6, APC12x8) (4S APC11x5.5) | 1000g-1300g (4S APC10x60, APC9060, APC8060) (3S APC11 * 5.5) | 1000 g-1400 g (4S APC9060, APC8060) |
| Toepasselijk 3D-Vliegtuiggewicht | 800 g-1200 g (3S APC13x6.5, 3S APC13x8) | 800 g-1200 g (3S APC13x6.5, 3S APC12x6, APC12x8) |
Technische specificaties:
KV900,Klik hier
KV1000,Klik hier
KV1200,Klik hier
KV1400,Klik hier
Pakket inbegrepen:

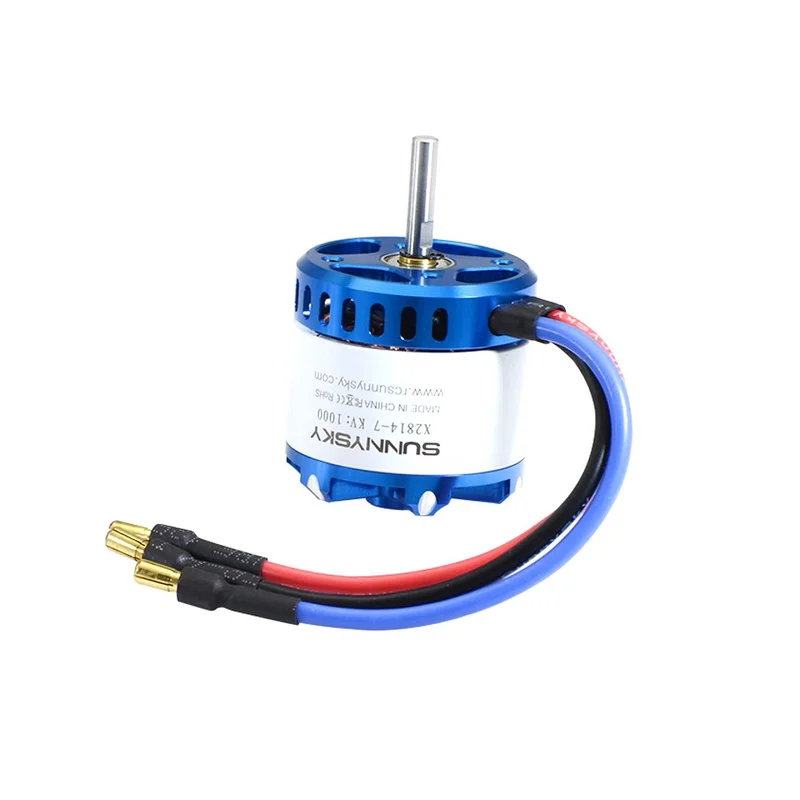

1x borstelloze motor X2814-III
1x accessoires
